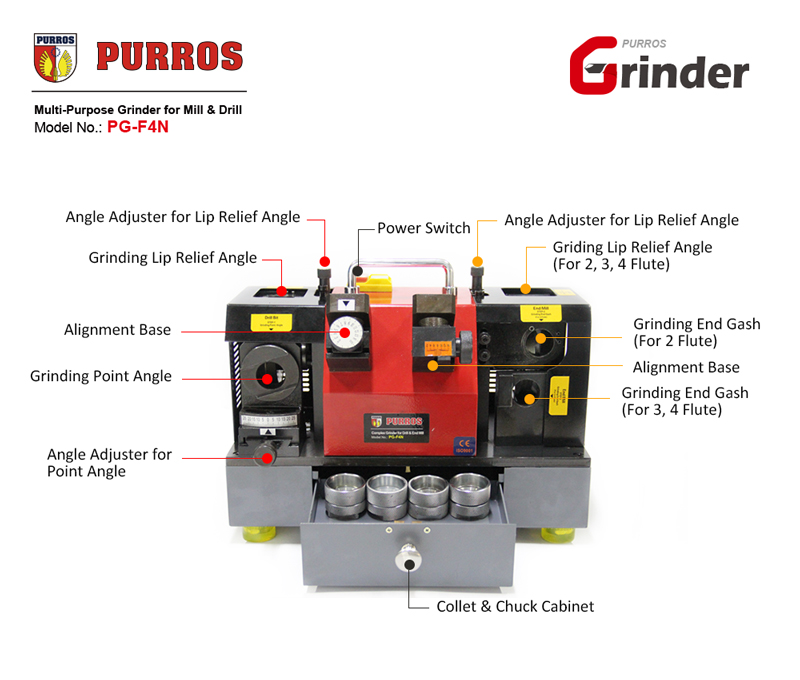

PURROS PG-F4N Complex Grinder for End Mill and Drill Bit

PURROS PG-F4N Complex Grinder for Mill and Drill Manufacturer. We are the multi-purpose sharpening machines manufacturer in China.

Descripción

ADVANTAGES

  1.  Easily grind end mill and drill
  2. One machine has double functions(mill and drill), with easy operation and lower cost.
  3. With CBN or SDC(alternative), longer service life.

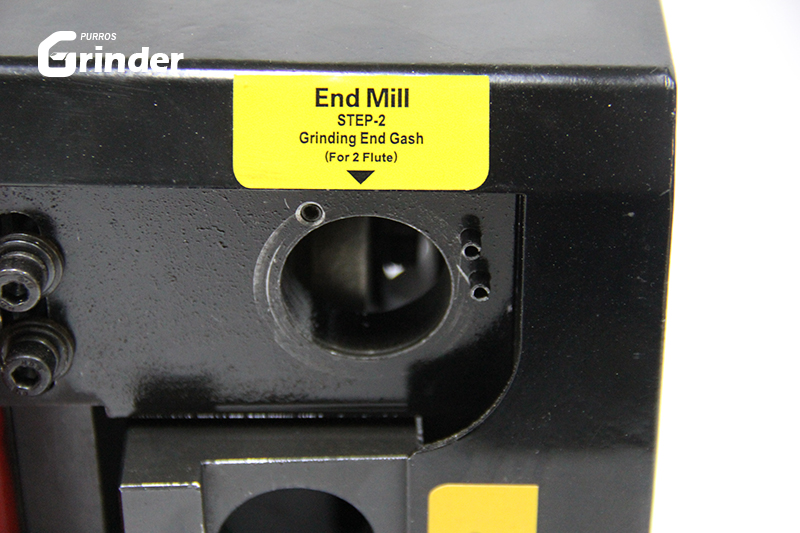

  4. The milling cutter can grind 2-flutes, 3-flutes, 4-flutes, 6-flutes and so on.

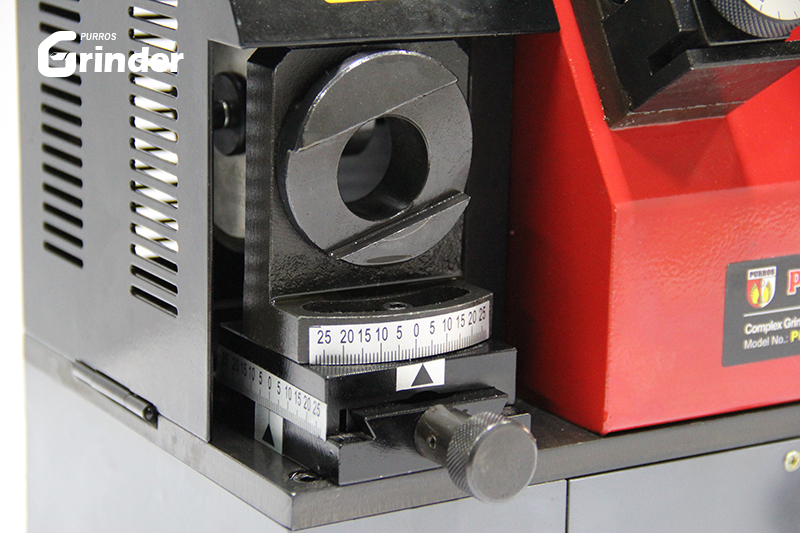

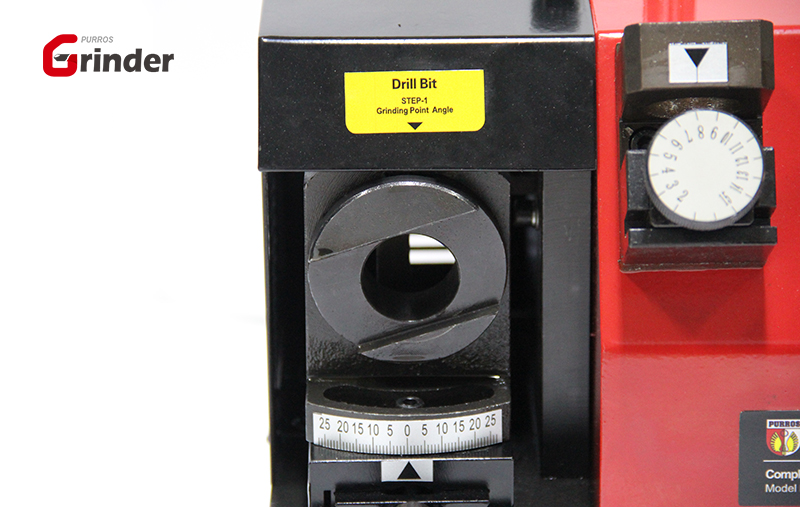

  5. Drill bit can be sharpened the major cutting lip angle, lip relief angle and front angle and point angle of drill and mill bit, you also can control the centre spot at random instend of centre drill, easy vent scraps, relaxed drilling and milling.

SPECIFICATION

Model: End Mill Drill
Range: Φ4-Φ14MM Φ3-Φ15MM
Point Angle: 0°~7° 95°~150°
Voltage: AC220V
Power: 200W
Motor: 5000RPM
Dimension: 46*32*31CM
Weight: 25KG
Standard Model: Grinding Wheel for Drill: CBN (for HSS)*1
Grinding Wheel for Mill: CBN(for HSS)*1

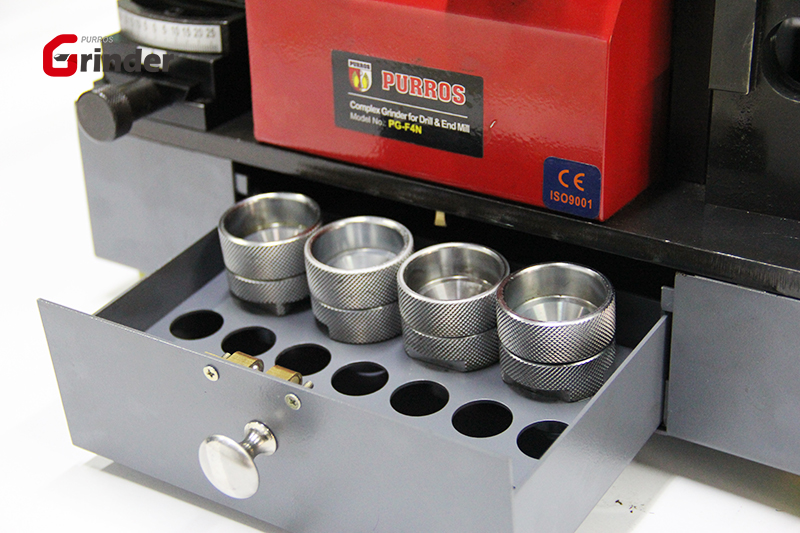

One collet chuck for drill;

Three collet chucks for end mill: one piece for each 2,3,4 flutes

Optional Model: Grinding Wheel for Drill: SD (for Carbide)
Grinding Wheel for Mill: SD (for Carbide)

For differences compared with PG-F4, please click on here (Some improved performances of PG-F4N is compared with PG-F4).
